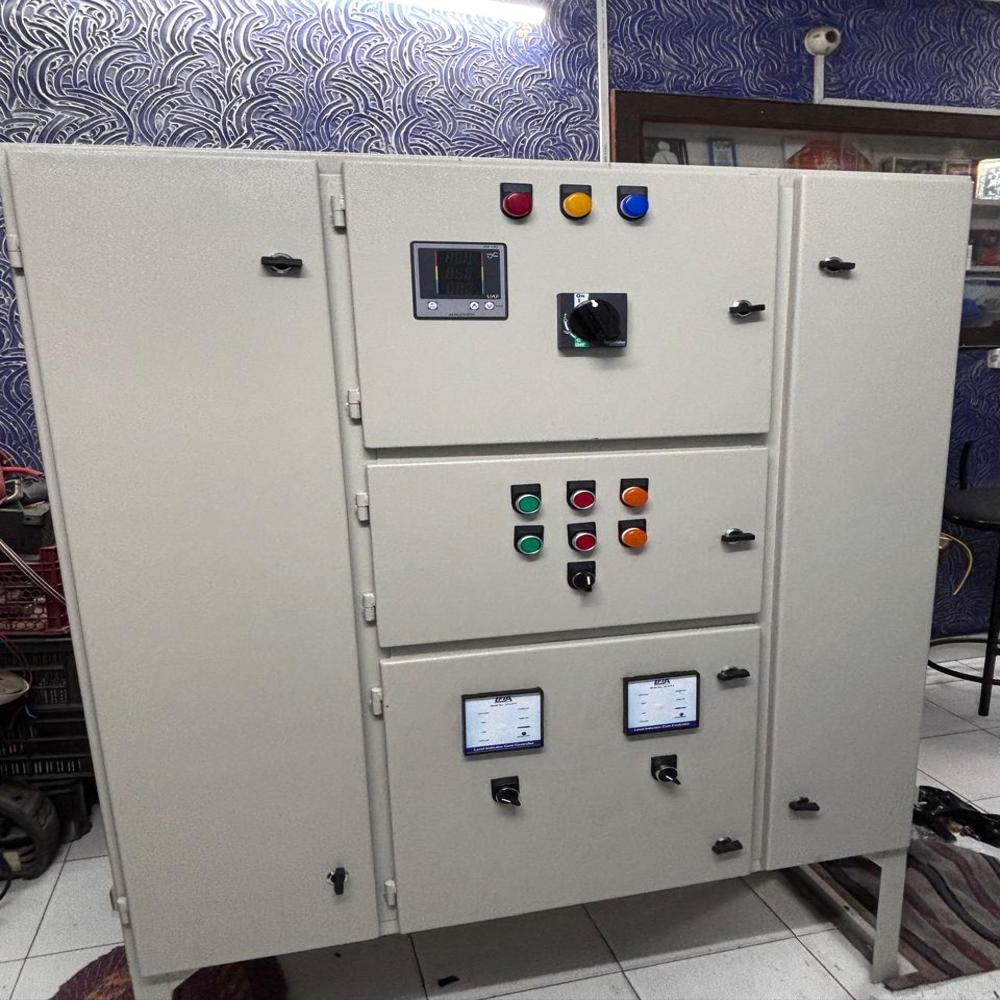

ELECTRIC CONTROL PANEL

Name: ELECTRIC CONTROL PANEL
Brand: Uppal Electronics & Solutions
Price: 15000.0 INR
Availability: InStock

Price 15000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

ELECTRIC CONTROL PANEL Specification

Protection Level
IP55

Panel Type
Floor Mounted

Rated Operation Voltage
415 V AC

Base Material
Mild Steel

Features
Weather Proof, Corrosion Resistant, Sturdy Construction

Current Rating
800 A

Cooling System
Natural Air Ventilation

Way
Multiple Ways

Thickness
2 mm

Rated Current
800 A

Connectivity Type
Cable Gland

Operating Voltage
415 V

Protection Class
Class I

Cover Material
Powder Coated Mild Steel

Cabinet Material
Mild Steel

Control System
Manual & Automatic

Components
MCB, MCCB, Contactor, Relay, Indicator, Terminal Blocks

Rated Insulation Voltage
690 V

Product Type
Electric Control Panel

Material
Mild Steel

Surface Finish
Powder Coated

Standard
IEC 61439

Surface Color
Gray

Rated Voltage
415 V

Frequency (MHz)
50 Hz

Maximum Output Current
800 A

Dimension (L*W*H)
2000 mm x 1200 mm x 400 mm

Application
Industrial Automation & Distribution

IP Rating
IP55

Display Type
Analog/LED Indicators

Earth Bar
Copper Provided

Wiring
Single/Three Phase Internal Wiring

Mounting Type
Floor/Wall Mounted

Door Type
Double Door with Gasket

Paint Type
Polyester Powder Coating

Enclosure Type
Dust and Vermin Proof

Accessories
Name Plate, Cable Lug, Earthing Terminal

Busbar Material
Electrolytic Grade Copper

Locking Mechanism
Key Type

Cable Entry
Top/Bottom Entry Provision

Seismic Resistance
Up to Zone 4

Ambient Temperature Range
-10C to +55C

About ELECTRIC CONTROL PANEL

The Control Panel in Microsoft Windows is a centralized interface that allows users to view, configure, and manage system settings, hardware, software, and user accounts. It provides access to tools for changing network, security, and peripheral settings through a series of applets, acting as a legacy management hub

Durable Construction for Reliability

Built with mild steel and finished in weatherproof polyester powder coating, the panel is designed to withstand corrosion and physical impact. The double-door with gasket ensures IP55 protection against dust and vermin, making it ideal for demanding industrial environments. Seismic resistance up to Zone 4 offers added peace of mind in critical applications.

Flexible Installation and Practical Design

Choose between floor and wall mounting to suit your workspace. Cable entry provision at both the top and bottom makes installation flexible. Every unit comes with accessible earthing terminals, cable lugs, and a clearly marked nameplate to facilitate efficient wiring and identification. The panel's sturdy build supports natural air-cooled operation.

Safety and Compliance Guaranteed

Fully compliant with IEC 61439 standards, this panel meets international safety requirements. It incorporates key-lock doors for secure access, copper busbars for efficient power distribution, and class I protection for operator safety. The inclusion of MCB, MCCB, contactor, and relays ensures safe control and distribution of electrical currents.
