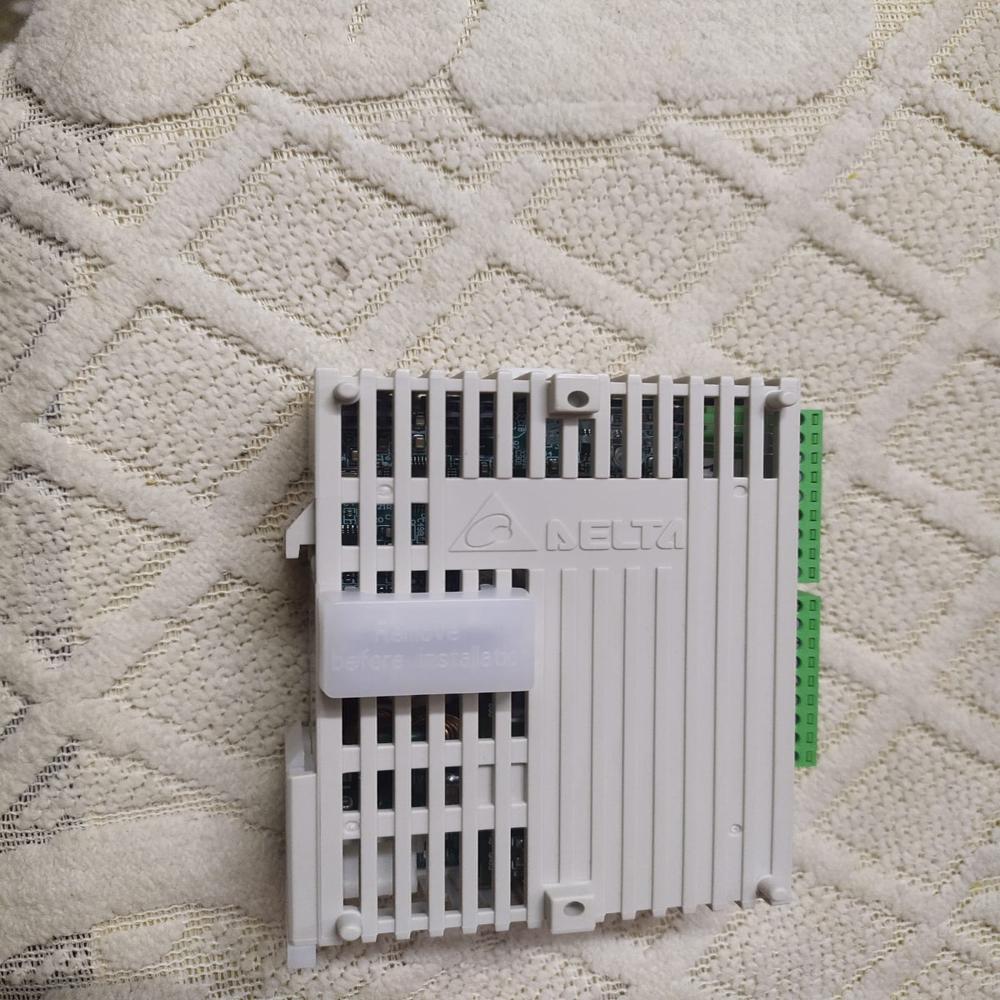

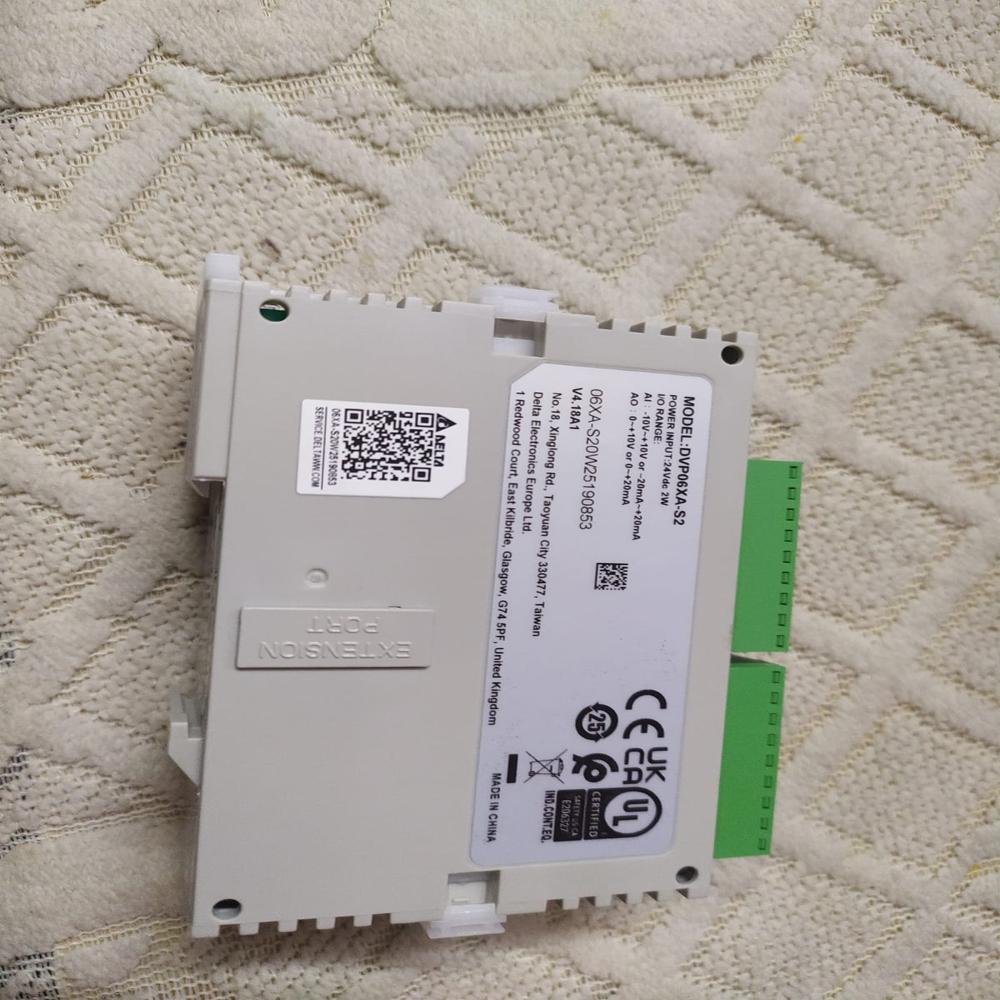

PLC EXPANSION MODULE

Name: PLC EXPANSION MODULE
Brand: Uppal Electronics & Solutions
Price: 7700.0 INR
Availability: InStock

Price 7700.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

PLC EXPANSION MODULE Specification

Connectivity Type
Bus Connector / Terminal Block

Cooling System
Natural Air Cooling

Panel Type
DIN Rail Mountable

Way
Multi-way I/O (depends on model)

Thickness
35 mm

Protection Class
Class II

Rated Insulation Voltage
500V AC

Current Rating
2A

Cover Material
Polycarbonate

Components
Signal Isolation, LED Indicators

Rated Current
2A

Base Material
ABS Plastic

Control System
Microprocessor-based

Rated Operation Voltage
24V DC

Operating Voltage
24V DC

Protection Level
IP20

Features
Hot Swappable, Expandable Multi-I/O, Short-circuit Protection

Product Type
PLC Expansion Module

Material
High-Quality Industrial Plastic

Surface Finish
Matte

Standard
IEC 61131-2

Surface Color
Grey

Rated Voltage
24V DC

Frequency (MHz)
50 Hz / 60 Hz

Maximum Output Current
0.5A per Channel

Dimension (L*W*H)
120mm x 90mm x 35mm

Application
Industrial Automation, Process Control

IP Rating
IP20

Display Type
Status LED Indicators

Ambient Operating Temperature
-10C to 55C

Status Indicator
LED for each channel

Power Consumption
<4W

Humidity Resistance
5-95% RH (Non-condensing)

Response Time
<2ms

Mounting Type
DIN Rail

Isolation Voltage
1500V AC

Output Channels
8 Digital / 8 Relay / 4 Analog (model dependent)

Storage Temperature
-25C to 70C

Input Channels
8 Digital / 8 Analog (model dependent)

Weight
200g (approx.)

Communication Protocol
Modbus, RS-485, Ethernet (optional)

PLC EXPANSION MODULE Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
7 Days

About PLC EXPANSION MODULE

PLC expansion modules are hardware components connected to a CPU unit to increase a system's I/O capacity, functionality, and communication capabilities. They provide cost-effective customization for digital, analog, and specialty tasks (e.g., RTD, Temperature) using protocols like Modbus or PROFINET.

This video explains the different types of expansion modules available for the VC Series

Versatile I/O Expansion for Industrial Automation

Tailor your automation setup with model-dependent input and output configurations, including digital, analog, and relay options. The PLC Expansion Module facilitates seamless integration into existing systems, supporting both signal isolation and multi-way I/O for adaptable process control and monitoring.

Reliable Performance and Robust Protection

Constructed from high-grade ABS plastic with polycarbonate cover, the module is designed to withstand demanding industrial environments. It operates efficiently between -10C and 55C, offers short-circuit protection, and is compliant with IEC 61131-2 standards, ensuring dependable operation even under challenging conditions.

User-Friendly Indicators and Simple Installation

Each input and output channel is equipped with an individual LED indicator for immediate status feedback. The module's DIN rail-mountable design and secure terminal blocks enable quick and straightforward installation, while hot-swappable functionality minimizes process downtime during maintenance or expansion.

FAQ's of PLC EXPANSION MODULE:

Q: How can the PLC Expansion Module be integrated into an existing automation system?

A: The module is compatible with a wide range of PLC control systems and supports Modbus, RS-485, and optional Ethernet protocols for flexible communication. Simply mount it on a DIN rail and connect using the provided terminal blocks or bus connectors to expand your system's I/O capacity.

Q: What benefits does the hot-swappable feature provide?

A: Hot-swappable capability enables you to replace or add modules without powering down the entire system. This minimizes downtime and supports continuous operation in industrial environments, leading to more efficient process management.

Q: When is it advisable to use this module's analog input or output capabilities?

A: Analog channels should be used when precision measurement or continuous control is required, such as monitoring temperature, pressure, or flow rates. Select models provide up to 8 analog inputs and 4 analog outputs to accommodate diverse automation needs.

Q: Where can the PLC Expansion Module be installed?

A: This module is suitable for indoor environments requiring IP20-level protection, such as industrial automation panels. It is designed to be DIN rail-mountable, making it ideal for control cabinets and distribution panels.

Q: What process does the status LED indicator follow for error detection?

A: Each channel has a dedicated LED that provides real-time operational status. If an error or abnormal state occurs, the corresponding LED will change status, enabling quick identification and response to potential issues.

Q: How does the module ensure safety and protection for connected equipment?

A: The module features signal isolation, short-circuit protection, and a 1500V AC isolation voltage, safeguarding connected devices and securing your control system against electrical faults or surges.

Q: What specific benefits does Modbus, RS-485, and optional Ethernet offer for data communication?

A: These communication protocols enable reliable and flexible connectivity with different controllers and networks. Modbus and RS-485 are widely used in industrial automation, while Ethernet allows for faster data transfer and broader network integration, maximizing system interoperability.
